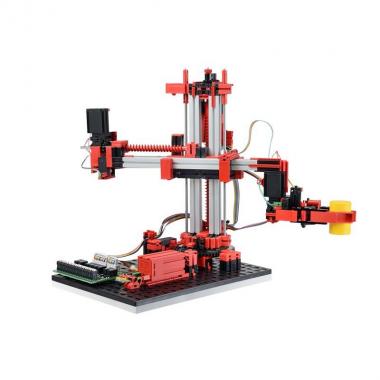

The 3-axis robot with gripping forceps quickly and precisely positions workpieces in three-dimensional space. Degrees of freedom: Axis 1: turn 180°, axis 2: forward/back 90 mm, axis 3: raise/lower 150 mm. The model can be ideally combined with training models "conveyor belt," "punching machine" and "conveyor line." Connection to PLC control: The model has a circuit board with relays for reversing the direction of rotation of the motors. All inputs and outputs can be connected to a jack plug (26-pin, 2.54 mm pitch) or to series terminals with push-in terminals.
| Additionally | |
| Package Contents | snap buttons, 2x encoder motor, 2x XS motor |
| Guarantee | |
| Guarantee | 12 months |
| Main | |
| Type | construction set |
| Colour | Multicoloured |
| Game Type | construction |
| Packaging parameters | |
| Width | 0 mm |
| Height | 0 mm |
| Length | 0 mm |
| Weight | 0 kg |
| Volume | 0 m3 |
