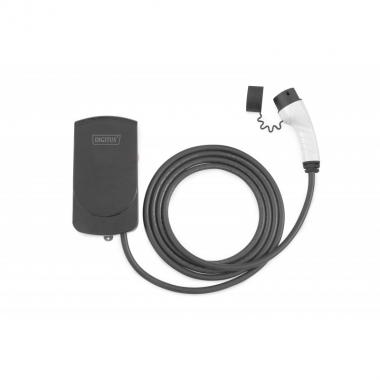

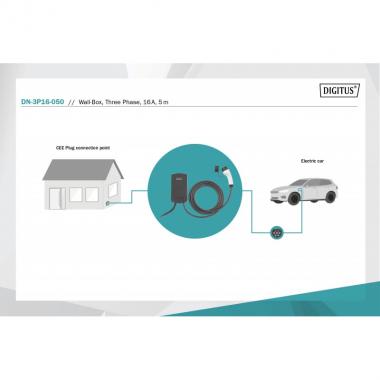

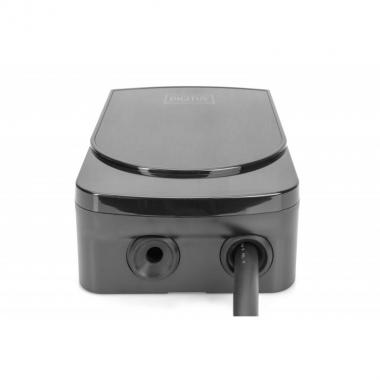

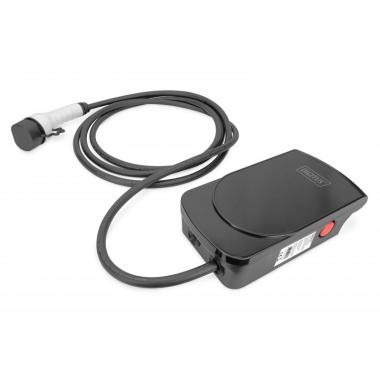

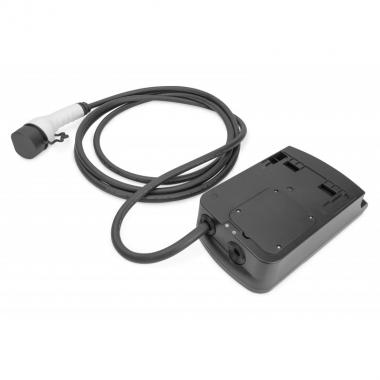

The Digitus Wallbox DN-3P16-S-050 offers an intelligent and convenient way to charge electric vehicles. The built-in connection plug (type 2) is connected to the wall box with a 5 m cable. IP55 protection allows flexible installation in various locations.
| Guarantee | |
| Guarantee | 24 months |
| Main | |
| A type | charger |

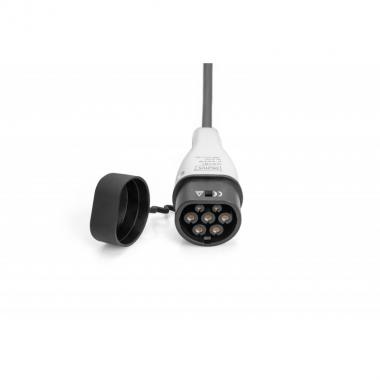

| Features | Protective cap |
| Compatibility | for charging EV vehicles at home (in the garage) |
| Output current, A | 16 |
| Colour | black |
| Voltage, V | 415 макс. |
| Power, kWt | 11 |
| Cable diameter | 5G6 mm²+2x0.5 mm² |
| Length of cable | 5 m |
| Connection phases | 3 |
| Conforms to the standard | UL94 V-0, EN 62196-1:2014, EN 62196-2:2017 |
| Working temperature | 30 °C ~ -50 °C |
| Cable outer diameter, mm | 16 +/- 0.5 mm |
| Sheath material | TPU |
| IP protection class | IP55 |
| Insulation resistance | 1000МΩ (Min) @ DC500V |
| Voltage resistance, V | 2000 |
| Packaging parameters | |
| Width | 460 mm |
| Height | 130 mm |
| Length | 460 mm |
| Weight | 4.1 kg |
| Volume | 0.0275 m3 |
