Setting options between several amperages and quick charging functions: e.g. Level 2 EVS: 230 V, 16 amps in total there are 11 options from 8A to 16A and a maximum charging capacity of 3.7kW to choose from. The charging time in relation to the currently standard 2.8 kW is up to 20% faster.
Guarantee | |
Guarantee | 24 months |
Main | |
A type | charger |
Compatibility | for charging EV vehicles at home (in the garage) |
Output current, A | 8 , 10 A, 13 A, 16 A (regulated) |
Colour | black |
Protection | surge protection, undervoltage protection, overcurrent protection, overheat protection, residual current protection (RCD Type-A) |
Voltage, V | 250 |
Power, kWt | 3.7 |

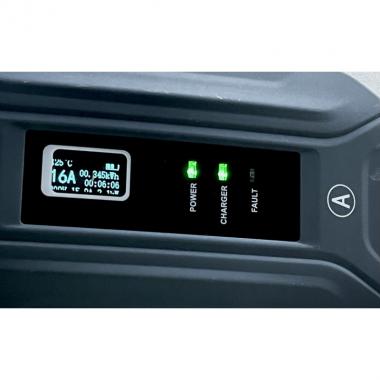

LCD display | charging current display, voltage display, power display, charging time display, charging status display, internal temperature display |
Cable diameter | 3G2.5 mm²+2*0.5 mm² |
Length of cable | 5 m |
Connection phases | 1 |

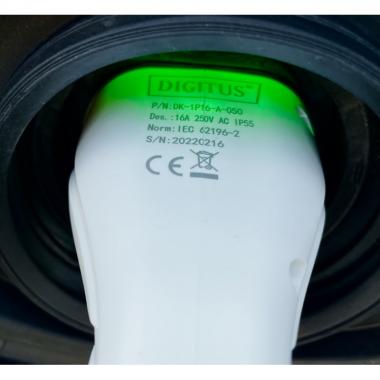

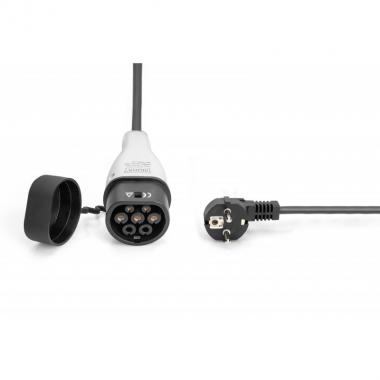

Connector plug | Type 2 2 pcs EN 62196 |
Conforms to the standard | UL94 V-0, EN 61851-1: 2019, EN 62752: 2016 |
Terminal temperature increase | ≤50K |
Working temperature | -20 °C ~ +50 °C |
Operating Humidity | 5%-95% non-condensing |
Packaging parameters | |
Width | 360 mm |
Height | 120 mm |
Length | 350 mm |
Weight | 2.37 kg |
Volume | 0.0151 m3 |
